Specifications
| MAX. CAPACITY WT. x WDT. | MODEL NUMBER | MAX. COIL O.D. | ~ | ||||||

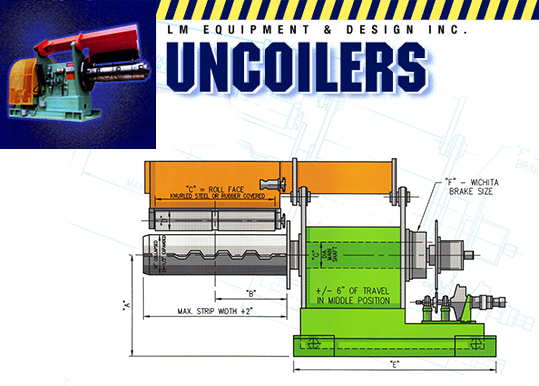

| ~ | ~ | ~ | "A" | "B" | "C" | "D" | "E" | "F" | "G" |
| 40,000 x 60" | UC2-4060 | 72" | 50" | 30" | 48" | 12" | 81.5" | ATD124 | 13" |
| 40,000 x 72" | UC2-4072 | 72" | 50" | 36" | 60" | 12" | 81.5" | ATD124 | 13" |
| 50,000 x 60" | UC2-5060 | 72" | 50" | 30" | 48" | 12" | 101.5" | ATD124 | 13" |
| 50,000 x 72" | UC2-5072 | 72" | 50" | 36" | 60" | 12" | 101.5" | ATD124 | 13" |
| 60,000 x 60" | UC2-6060 | 72" | 50" | 30" | 48" | 12" | 101.5" | ATD124 | 15" |
| 60,000 x 72" | UC2-6072 | 72" | 50" | 36" | 60" | 12" | 101.5" | ATD124 | 15" |
| 60,000 x 84" | UC2-6084 | 72" | 50" | 42" | 60" | 12" | 108" | ATD124 | 15" |
