ALL ROLL TYPE TENSION STANDS FEATURE:
- Heavy welded steel construction.
- Adjustment and pressure by hydraulic cylinders with remote pressure control.
- Cylinder equalization by either flow divider or rack and pinion.
- Pass line to suit customer.
- Separator arbor with tooling - slides out on rollers to operator's
side for changing.

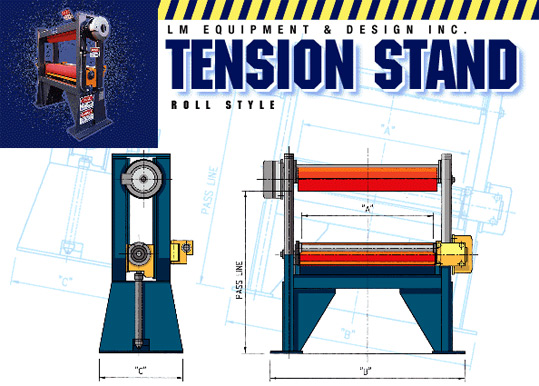

Specifications
CAPACITY WIDTH x THICK |
MODEL NUMBER |
|||
~ | ~ | "A" | "B" | "C" |
48" x .187" | TR-4800 | 54" | 80" | 36" |
60" x .187" | TR-6000 | 66" | 92" | 42" |
72" x .187" | TR-7200 | 78" | 104" | 48" |
