ALL COMBINATION TENSION STANDS FEATURE:
- Heavy welded steel construction.
- Ability to operate with either pinch rolls or drag boards or both.
- Remote pressure control for drag board pressure.
- Large water cooled brakes on end of each pinch rolls.
- Diced rolls for even distribution of pressure.
- Separator arbor with tooling - slides out on rollers to operator's
side for changing.

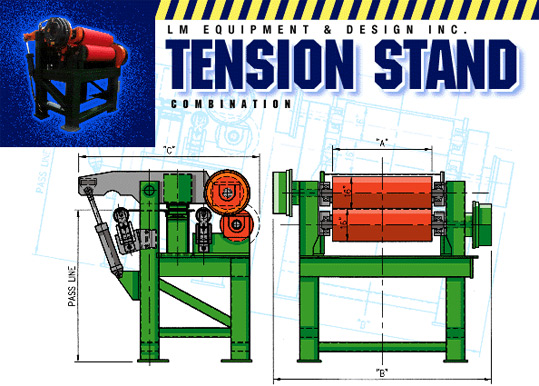

Specifications
| CAPACITY WIDTH x THICK | MODEL NUMBER |
~ | ||
| ~ | ~ | "A" | "B" | "C" |
| 48" x .187" | TC-4800 | 54" | 114" | 80" |
| 60" x .187" | TC-6000 | 66" | 126" | 80" |
| 72" x .187" | TC-7200 | 78" | 138" | 80" |
