AUTOMATIC EDGE CONTROL SYSTEM FEATURES:
- All steel welded construction
- Positioning by hydraulic cylinder & push button control
- A simple "off" & "on" system that can be serviced by your own
maintenance personnel. There are no "black box" electrics - After positioning of the edge control with the edge of the strip, the system will move
the uncoiler on its slide base to maintain the edge of the strip in a fixed position
Specifications

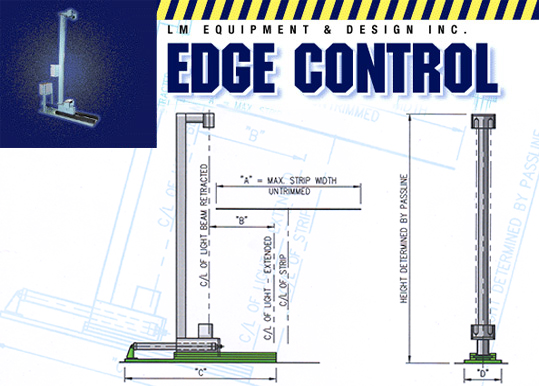

MAX. CAPACITY WIDTH A | MODEL NUMBER |
|||||||
~ | ~ | "A" | "B" | "C" | "D" | |||
48" + 2" TRIM | AE - 48 | 50" | 22" | 59" | 16" | |||
60" + 2" TRIM | AE - 60 | 62" | 28" | 65" | 16" | |||
72" + 2" TRIM | AE - 72 | 74" | 34" | 71" | 16" |
